Library items, Dimensional Lumber, inch, North America ...

Post by Husky » Wed Aug 28, 2013 1:16 am

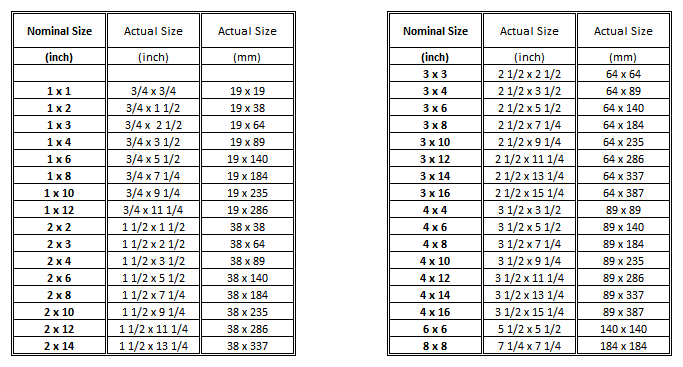

Library Items for everybody (like me!) who can't remember the actual Dimensional Lumber size of a (e.g.) 2x4 ... and no - it isn't 2x4 :? :? :shock:

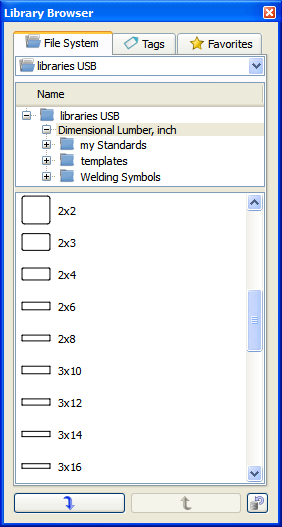

You will find in the .zip file Library items for:
Dimensional Lumber, inch, North America.zip
(236.93 KiB) Downloaded 2424 times
As usual .... free for QCAD user!!!

Have fun! 8)
