Hi All

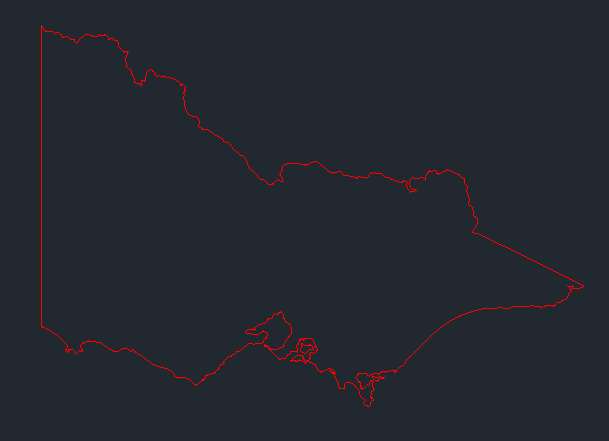

Is there a way to reduce the entities in this file ? at the moment it has 1078 lines..
Is it possible to convert a bunch of lines into splines and then explode to arcs?
Any help will be appreciated..

Cheers
John Hyslop
PS I want to lasercut this..

John Hyslop wrote: ↑

Wed Apr 27, 2022 1:33 am

Is there a way to reduce the entities in this file ? at the moment it has 1078 lines..

Sure - but you will loose details ...

John Hyslop wrote: ↑

Wed Apr 27, 2022 1:33 am

Is it possible to convert a bunch of lines into splines and then explode to arcs?

No, not that I know of ...

John Hyslop wrote: ↑

Wed Apr 27, 2022 1:33 am

PS I want to lasercut this..

What about a polyline with reduced segments?

BTW: Tasmania would be much less work ....

Hi Husky

I tried an AutoCAD Lisp file to convert polyline to spline but when I exploded it in Qcad I finished up with twice as many entities

Sure - but you will loose details ...

Would you mind showing an example how to do this please
I don't mind loosing some..

Cheers
John Hyslop

John Hyslop wrote: ↑

Wed Apr 27, 2022 3:04 am

Would you mind showing an example how to do this please

Select the whole contour,
launch "Polyline from Selection" (OC),
select the polyline,
launch "Simplify (OS),
"play" with the tolerance in the option bar to see what works best for you - I assume something between 0.1 - 0.5. The Tolerance bar has a Node indicator and a life preview is provided in the drawing too ...

Thanks Husky

That's Perfect Got Rid of All The Small Lines...

Cheers
John Hyslop

You're quite welcome!
